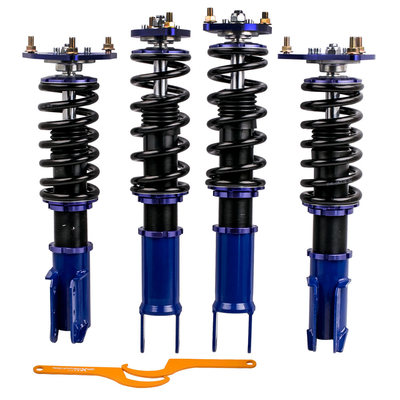

Compatible For Mitsubishi Lancer EVO 7 8 9 2001 - 2007 Shock Struts
Full Assembly Set Coilover
IntroductionMXR-B2 series(also called MXR-SNA) coilovers are designed as an entry level for street use. It features with full length height adjustable and adjustable camber plates (applicable for some vehicles), which offers you a lowered stance, improved performancefor your daily use vehicle. ApplicationOnly Compatible for Mitsubishi Evolution / Lancer Evo 7 8 9 CT9A 2001-2007 Platform: 4G63Compatible for Evolution VII Seventh generation 2001-2003Compatible for Evolution VIII Eighth generation 2003-2005Compatible for Evolution IX Ninth generation 2005-2007Please notice that these coilovers will not fit Lancer/Mirage FWD 4G94 or 4G69 version 2000-2007 SpecificationTop mount: Front camber plate；rear pillow ballDamping: 24 levels rebound damping adjustableSpring rate Front: 9 kg/mm (504
lbs/in)Spring rate Rear: 7 kg/mm (392 lbs/in)Spring length Front: 190mmSpring length Rear: 220mmAdjustable height: lowering 1-3 inchFront coilover length: 415mm-505mmRear coilover length: 495mm-560mmShock type: Twin tubeSpring Preload: 7-10 mmColor: gold body with black spring Package includedfront and rear complete coilover assembly A pair wrench for height adjustment Feature1.Lowered height adjustment from 1" - 3" which allow lower center of gravity and also add a more aggressive stance. 2.Camber plate top mounts help to eliminate the need for a separate camber kit. 3.Twin-Tube structure allows sufficient stroke within the shock absorber. 4.Complete Suspension Kit of 4 Shock Absorbers 4 Springs for an easy installation. 5.Separate height adjustment does not affect damper stroke and
height can be adjusted with coilovers installed on the vehicle. 6.High Tensile performance spring - STRESS TESTED OVER 600, 000 times while the spring distortion is less than 0.04%. Plus the special surface treatment improves the durability and performance. 7.Most pieces in our coilover systems, including mounts, collars and spring perches, are designed from 6061-T6 Billet Aluminum resulting in lightweight, durable and rust resistant components. 8.Steel shock bodies with special surface treatment to improve the durability. 9.Full rebuildableWarranty: one year warranty for any manufacturing defect
lbs/in)Spring rate Rear: 7 kg/mm (392 lbs/in)Spring length Front: 190mmSpring length Rear: 220mmAdjustable height: lowering 1-3 inchFront coilover length: 415mm-505mmRear coilover length: 495mm-560mmShock type: Twin tubeSpring Preload: 7-10 mmColor: gold body with black spring Package includedfront and rear complete coilover assembly A pair wrench for height adjustment Feature1.Lowered height adjustment from 1" - 3" which allow lower center of gravity and also add a more aggressive stance. 2.Camber plate top mounts help to eliminate the need for a separate camber kit. 3.Twin-Tube structure allows sufficient stroke within the shock absorber. 4.Complete Suspension Kit of 4 Shock Absorbers 4 Springs for an easy installation. 5.Separate height adjustment does not affect damper stroke and
height can be adjusted with coilovers installed on the vehicle. 6.High Tensile performance spring - STRESS TESTED OVER 600, 000 times while the spring distortion is less than 0.04%. Plus the special surface treatment improves the durability and performance. 7.Most pieces in our coilover systems, including mounts, collars and spring perches, are designed from 6061-T6 Billet Aluminum resulting in lightweight, durable and rust resistant components. 8.Steel shock bodies with special surface treatment to improve the durability. 9.Full rebuildableWarranty: one year warranty for any manufacturing defect
