Application Compatible for BMW E30 M3 S14B23 88-91 L4 Specification Type: Forged 4340 aircraft chrome moly quality steel for racing H-beam Conrods Quantity:1 set of 4 pieces Bolts: Including Genuine ARP 2000 bolts Note: Extra cost for upgrading to ARP L19 bolts Bolts

Size: 3/8" ARP 2000 bolts Tolerance: Balanced to +/- 1 gram in set Piston Bolt Hole: +-4/1000mm Power: 600hp ~ 800hp per set Strength of the fastening (PSI): 220, 000/230, 000 PSI Torque: 48ft ≈ 65 NM Top acceleration: 9000rpm warranty: one year Dimensions Center to center length: 144mm Big end diameter: 52mm Small end diameter: 22mm Big end

Width: 24mm Small end

Width: 24mm Feature- Forged SAE 4340 Chrome Moly Steel for the highest strength & durability, dedicated for Racing- Designed & processed by CNC machine.- All big & small ends are finished with SUNNEN honing machine- Precision alignment sleeves positively locate the rod cap, maintaining big end bore size & eliminating cap walk- 100% X-rayed, sonic tested & magnafluxed- Multi-stage heat treated- Shot peened to relieve stress- Come with the bronzed bushing suitable for the floating piston pin Note Professional installation is highly recommended (No Instruction Included) Custom Service: If there's no conrods you need on our site, we would be happy to help determine your requirements & develop a solution with you to satisfy your needs. Learn more about CUSTOM SERVICE





...

Application Compatible for BMW E30 316/316i/ 318i/ 320i/ 323i/ 325i/ 324D/324TD Saloon 1982.11-1991.1 Notice: Compatible for BMW E30 Saloon 51mm front strut diameter only The coilovers will fit BMW E30 316/316i/ 318i/ 320i/ 323i/ 325i/ 324D/324TD Saloon 1982 -1988 models, but it may not lower the car as much as the late model, because the rear chassis is different. Compatible for BMW E30 316 1988.11-1991.1, the coilovers can fit earlier models except 1. Pre 1988 1.6L 1.8L. Specification Quantity:-2 front+2 rear shocks-2 C- Spanners for adjustment-2 rear Springs+2 front Springs-Front Bump stops & dust covers Spring Rate: 7 kg/mm (392 lbs/in) ; 6 kg/mm (336 lbs/in) Damper: Non Adjustable Damper Adjustable

Height: YESWarranty: one year warranty for any manufacturing defect Feature- Adjustable ride height- Adjustable pre-load spring tension- Most components are made from 6061 aluminum with T6 for increased hardness -- the advantages include excellent strength, & aluminum helps keep the weight down.
- Hi Tensile performance spring
- Under 600, 000 times continuously test, the spring distortion is less than 0.04%. Plus, the special surface treatment is to improve the durability & performance.- All inserts come with fitted rubber boots to protect the damper & keep clean.- Improve your handling performance without sacrifice comfortable ride.- A fast & affordable way to easily upgrade your car's appearance.- Easy installation with right tools.- Ideal for any track, drift & fast road & can also be used for daily driving. Notice Notice: No Top Mount Included， Modification Required If You Use OE Top Mount Struts come in two

Sizes: 45mm & 51mm. The bigger size on Tourings & Cabriolets. If you are unsure of what size strut your car has, & you can't remember your maths lessons, then use a bit of string. Wrap the string around the strut, & then measure its length; 141mm means a 45mm strut, & 160mm means a 51mm strut. Does NOT fit the M3, i X (All-Wheel-Drive) models





...

Application Compatible for BMW 3 Series (E36) 1991–1998 Europe Compatible for BMW 3 Series (E36) 1992—1999 US & Canada Compatible for BMW E36 318i, 318is, 318ic, 323i, 323ic, 323is, 325i, 325is, 325ic, 328i, 328is, 328ic, M3（except 318TI Compact） -- For Coilover Only Description Condition: New Quantity: One set with 2 pieces Adjustable Timing Mark: YES Bushing: Pillow Ball deisgn for adjustment precisely
Colour: Golden Warranty: one year warranty for any manufacturing defect Feature
- All components are carefully selected with the qualitymaterial for durable use
- Super strong & significant improvement for driftingcars- Adjust camber independent of caster- Large range of adjustment while still allowing caster andcamber to be adjusted from the top without cutting thestrut tower
- Maintain proper strut angle at any position by not pre-setting theangle
- Provide proper orientation with a replaceable urethanebushing- Minimize noise associated with the urethane bushing Notice
- With pillow ball bushing, these camber plates will NOT fit OEM stock springs. They will fit coilover springonly.- The picture with

Dimensions is available. Please contactus for it.- No instruction included; professional installation & alignment suggested.







...

Application ALL compatible for BMW E36 3 Series 318, 320, 323, 325, 328, M3 I, IC, IS, TI -- For Coilover Only Specifications Quantity: One set with 2 pieces Adjustable Timing Mark: YES Bushing: Pillow Ball deisgn for adjustment precisely
Colour: Blue Warranty: one year warranty for any manufacturing defect Condition: New Features
- All components are carefully selected with the quality material for durable use- Super strong & significant improvement for drifting cars
- Adjust camber independent of caster- Large range of adjustment while stillallowing caster & camber to be adjusted from the top without cutting the struttower
- Maintain proper strut angle at any position by not pre-setting the angle
- Provide proper orientation with a replaceable urethane bushing
- Minimize noise associated with the urethane bushing Notice
- With pillow ball bushing, these camber plates will NOT fit OEM stock springs. They will fit coilover spring only.
- The picture with

Dimensions is available. Please contact us for it
- Please feel free to contact us for whatever we can help for you.
- No instruction included, professional suggested.











...

Application Compatible for E36 models 3-series 92-98: 318i, 318is, 318ic, 323i, 323ic, 323is, 325i, 325is, 325ic, 328i, 328is, 328ic, M3 (will not fit 318ti) Compatible for E46 models 3-series 99-05: 323i, 323ci, 323cic, 325i, 325ci, 325cic, 325xi, 328i, 328ci, 328cic, 330i, 330ci, 330cic, M3 Compatible for E83 Models X3:2.5i, 2.5si, 3.0i, 3.0si through 2010 Compatible for E85 E86 Models Z4: 2.5i, 2.5si, 3.0i, 3.0si, M-Roadster (will not fit M-Coupe) Compatible for E89 Models Z4: 3oi, 35i, 35is 09-current Specification Package
Includes::1 x Pair of Rear Lower Adjustable Camber Arm Kit (Left Right)
Material: Steel, Polyurethane Installation location: Rear, Lower, Left, Right
Colour: Green Adjustable: Yes Length range: 70mm Notes: Allows For +3.0 To -1.0 Degrees Of Rear Lower Camber Adjustment Warranty: 1 year warranty for any manufacturing defect Weight：3.88kg Package Dimensions：61*15.5*15cm Surface finish: Powder-Coated Feature 1. New Items, Never Used Or Installed.2. Replaces Old, Worn-Out Factory Rear Lower Control Arms With a High Performance Adjustable Unit.3. Corrects Your Camber Suspension By Allowing Fine Tuning of Camber Adjustment Settings From ±3° Degrees For Optimal Performance.4. Rubber bushing for smooth ride comfort.5. Eliminates tire wear while improving stability.6. Improves rear suspension with better handling & predictable response.7. Perfect for track cars, drifting, road course, & off road. Notice- Please double confirm before ordering.- No instruction included; Professional installation & alignment suggested.- For any needs please contact us.


...

Application Compatible for E36 models 3-series 92-98: 318i, 318is, 318ic, 323i, 323ic, 323is, 325i, 325is, 325ic, 328i, 328is, 328ic, M3 (will not fit 318ti) Compatible for E46 models 3-series 99-05: 323i, 323ci, 323cic, 325i, 325ci, 325cic, 325xi, 328i, 328ci, 328cic, 330i, 330ci, 330cic, M3 Compatible for E83 Models X3:2.5i, 2.5si, 3.0i, 3.0si through 2010 for E85 & E86 Models Z4: 2.5i, 2.5si, 3.0i, 3.0si, M-Roadster (will not fit M-Coupe) Compatible for E89 Models Z4: 3oi, 35i, 35is 09-current Specification Package
Includes::1 x Pair of Rear Lower Adjustable Camber Arm Kit (Left & Right)
Material: Steel, rubber Installation location: Rear, Lower, Left, Right
Colour: Blue/ Red/ Black/ Chrome/green/golden Adjustable: Yes Overall Length (Shortest-Longest):435-510mm Notes: Allows For +3.0 To -1.0 Degrees Of Rear Lower Camber Adjustment Weight：3.88kg Package Dimensions：61*15.5*15cm Surface finish: Powder-Coated Feature 1. New Items, Never Used Or Installed 2. Replaces Old, Worn-Out Factory Rear Lower Control Arms With a High Performance Adjustable Unit 3. Corrects Your Camber Suspension By Allowing Fine Tuning of Camber Adjustment Settings From ±3° Degrees For Optimal Performance 4. Rubber bushing for smooth ride comfort Warranty: one year warranty for any manufacturing defect


...

Application Compatible for BMW E39 5-Series Sedan 1996-2003 Models: 520i/ 523i/ 525i/ 528i/ 530i/ 520D/ 525D/ TD/ TDS/ 530 D Compatible for BMW 540 (with front top mount, but not include in our kit) Note: Will not fit Self Leveling/ Air suspension model Not for Wagon or M5 Models Specification Quantity:
- 2 front+2 rear shocks- 2 C- Spanners for adjustment- 2 rear springs- Front Bump stops & dust covers Spring rate Front: 7 kg/mm (392 in/lbs) Spring rate Rear: 5 kg/mm (280 in/lbs) Damper: Non Adjustable Damper Adjustable

Height: YES
Colour: Blue Warranty: one year warranty for any manufacturing defect Feature- Adjustable ride height- Adjustable pre-load spring tension- Most components are made from 6061 aluminum with T6 for increased hardness -- the advantages include excellent strength, & aluminum helps keep the weight down.- Hi Tensile performance spring
- Under 600, 000 times continuously test, the spring distortion is less than 0.04%. Plus, the special surface treatment is to improve the durability & performance.
- All inserts come with fitted rubber boots to protect the damper & keep clean.- Improve your handling performance without sacrifice comfortable ride.- A fast & affordable way to easily upgrade your car's appearance.- Easy installation with right tools.- Ideal for any track, drift & fast road & can also be used for daily driving. Not- No instruction included; Professional installation alignment suggested.- Please check our store for other auto parts you may be interested in.- Please feel free to contact us for whatever we can help.





...

Application Compatible for BMW E46 3 Series 1998-2005 compatible for BMW E46 316i, 316i/ti, 318i/ Ci, 318i/ Ci/ti, 318 Ci, 320i, 320i/ Ci, 323i/ Ci, 325i/xi/ Ci/ti (EUR), 328i/ Ci, 330i/xi/ Ci, M3 Do not compatible for BMW Compact Specification* Condition: New * Adjustable Timing Mark: YES * Quantity: One set with 2 pieces *
Colour: Blue * Correspoding suspension parts you may also need: 331463807186: Compatible for BMW E46 Adjustable Coilover * Warranty :one year warranty for any manufacturing defect Feature* All components are carefully selected with the quality material for durable use * Super strong & significant improvement for drifting cars * Adjust camber independent of caster * Large range of adjustment while still allowing caster & camber to be adjusted from the top without cutting the strut tower * Maintain proper strut angle at any position by not pre-setting the angle * Provide proper orientation with a replaceable urethane bushing * Minimize noise associated with the urethane bushing Notice* With pillow ball bushing, these camber plates will NOT fit OEM stock springs. They will fit coilover spring only. * No instruction included; professional installation & alignment suggested. * Please check the camber plate adjustment range below before buying * These camber plates will not fit OEM stock springs. They fit coilover spring only. They do not fit compact car. * We can provide the pictuce with

Dimensions for fitment confirmation.


...

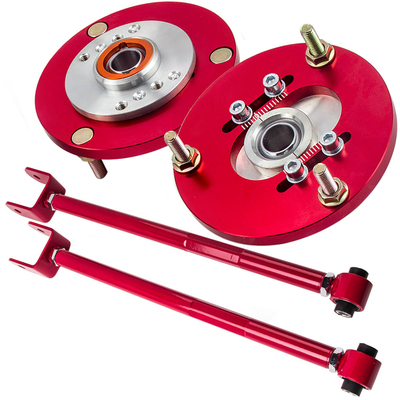

Application Compatible for BMW E46 3 Series 1998-2005 Specification Condition: New Quantity: One set with 2 pieces Adjustable Timing Mark: YES Bushing: Pillow Ball deisgn for adjustment precisely
Colour: Red Warranty: one year warranty for any manufacture defect Feature
- All components are carefully selected with the quality material for durable use
- Super strong & significant improvement for drifting cars
- Adjust camber independent of caster
- Large range of adjustment while still allowing caster & camber to be adjusted from the top without cutting the strut tower
- Maintain proper strut angle at any position by not pre-setting the angle
- Provide proper orientation with a replaceable urethane bushing
- Minimize noise associated with the urethane bushing Notice- With pillow ball bushing, these camber plates will NOT fit OEM stock springs. They will fit coilover spring only.
- The picture with

Dimensions is available. Please contact us for it.
- Please feel free to contact us for whatever we can help for you.
- No instruction included; professional installation & alignment suggested.












...

Application* Control Arm

Fit: E36 models; 3-series 92-98 (318i, 318is, 318ic, 323i, 323ic, 323is, 325i,

...
