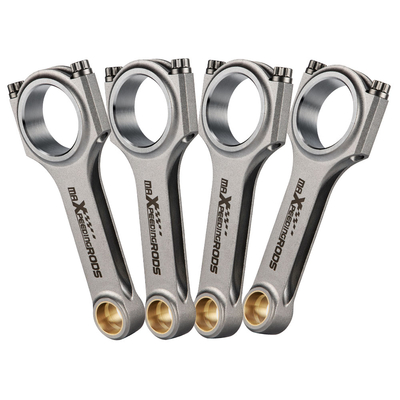

Compatible For BMW E30 M3 S14 144mm ARP 2000 Connecting Rod High
Performance 4340 EN24 H-Beam Conrod
ApplicationCompatible for BMW E30 M3 S14B23 88-91 L4SpecificationType: Forged 4340 aircraft chrome moly quality steel for racingH-beam Conrods Quantity:1 set of 4 piecesBolts: Including Genuine ARP 2000 boltsNote: Extra cost for upgrading to ARP L19 bolts Bolts Size: 3/8" ARP 2000 boltsTolerance: Balanced to +/- 1 gram in set Piston Bolt Hole: +-4/1000mm Power: 600hp ~ 800hp per set Strength of the fastening (PSI): 220, 000/230, 000 PSI Torque: 48ft ≈ 65 NM Top acceleration: 9000rpm warranty: one yearDimensionsCenter to center length: 144mmBig end diameter: 52mmSmall end diameter: 22mmBig end width: 24mmSmall end width: 24mmFeature- Forged SAE 4340 Chrome Moly Steel for the highest strength and durability, dedicated for Racing- Designed and processed by CNC machine.- All big and small
ends are finished with SUNNEN honing machine- Precision alignment sleeves positively locate the rod cap, maintaining big end bore size and eliminating cap walk- 100% X-rayed, sonic tested and magnafluxed- Multi-stage heat treated- Shot peened to relieve stress- Come with the bronzed bushing suitable for the floating piston pinNoteProfessional installation is highly recommended (No Instruction Included)Custom Service:If there's no conrods you need on our site, we would be happy to help determine your requirements and develop a solution with you to satisfy your needs. Learn more about CUSTOM SERVICE
