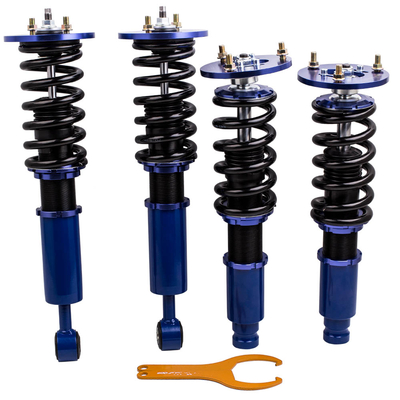

Twin-Tube Damper Coilover Suspension Kits For Eclipse 95 - 99 Galant
94-98
IntroductionMXR-B2 series(also called MXR-SNA) coilovers are designed as an entry level for street use. It features with full length height adjustable and adjustable camber plates (applicable for some vehicles), which offers you a lowered stance, improved performancefor your daily use vehicle.
ApplicationCompatible for MITSUBISHI ECLIPSE 1995-1999USA D38A CONVERTIBLE, 4CYL/TURBO
Compatible for MITSUBISHI ECLIPSE 1995-1999USA D33A 4CYL/TURBO
Compatible for MITSUBISHI ECLIPSE 1995-1999USA D32A 4CYL/TURBO
Compatible for MITSUBISHI ECLIPSE 1995-1999USA D31A4CYL/NON TURBO
SpecificationTop mount: front camber plate; rear rubber
Front Spring Rate:12kg/mm(672 lbs/in)
Rear Spring Rate: 9kg/mm(504lbs/in)
Spring length Front: 190mm
Spring length Rear: 190mm
Coilover overall length Front:
445mm-495mm Coilover overall length Rear: 485mm-575mm Adjustable height: Yes lowering 1" to 3" Spring Preload: 7-10 mm Shock type：Twin tube Color: blue body with black spring Package includedComplete coilovers assembly 2 front and 2 rear A pair wrench for height adjustment DimensionPackage dimension: 63*51*21 Weight: 25560g Feature1.Lowered height adjustment from 1" - 3" which allow lower center of gravity and also add a more aggressive stance. 2.Camber plate top mounts help to eliminate the need for a separate camber kit. 3.Twin-Tube structure allows sufficient stroke within the shock absorber. 4.Complete Suspension Kit of 4 Shock Absorbers & 4 Springs for an easy installation. 5.Separate height adjustment does not affect damper stroke and height can be adjusted with coilovers installed
on the vehicle. 6.High Tensile performance spring - STRESS TESTED OVER 600, 000 times while the spring distortion is less than 0.04%. Plus the special surface treatment improves the durability and performance. 7.Most pieces in our coilover systems, including mounts, collars and spring perches, are designed from 6061-T6 Billet Aluminum resulting in lightweight, durable and rust resistant components. 8.Steel shock bodies with special surface treatment to improve the durability. 9.Full rebuildableWarranty: one year warranty for any manufacturing defect
445mm-495mm Coilover overall length Rear: 485mm-575mm Adjustable height: Yes lowering 1" to 3" Spring Preload: 7-10 mm Shock type：Twin tube Color: blue body with black spring Package includedComplete coilovers assembly 2 front and 2 rear A pair wrench for height adjustment DimensionPackage dimension: 63*51*21 Weight: 25560g Feature1.Lowered height adjustment from 1" - 3" which allow lower center of gravity and also add a more aggressive stance. 2.Camber plate top mounts help to eliminate the need for a separate camber kit. 3.Twin-Tube structure allows sufficient stroke within the shock absorber. 4.Complete Suspension Kit of 4 Shock Absorbers & 4 Springs for an easy installation. 5.Separate height adjustment does not affect damper stroke and height can be adjusted with coilovers installed
on the vehicle. 6.High Tensile performance spring - STRESS TESTED OVER 600, 000 times while the spring distortion is less than 0.04%. Plus the special surface treatment improves the durability and performance. 7.Most pieces in our coilover systems, including mounts, collars and spring perches, are designed from 6061-T6 Billet Aluminum resulting in lightweight, durable and rust resistant components. 8.Steel shock bodies with special surface treatment to improve the durability. 9.Full rebuildableWarranty: one year warranty for any manufacturing defect
