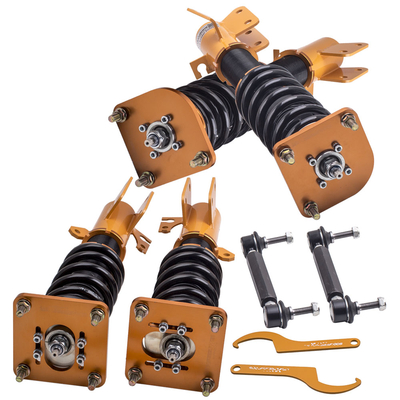

Compatible For Mazda Protege 323 BJ 1999-2003 Adj Damper Coilovers
Suspension Lowering Kit
IntroductionMXR-SLC based on MXR-SNA coilovers, which is also height adjustable but adds damping adjustment ability by a knob the top of the shaft. They are also made for street use, but the 24-level rebound damping control allows you the ability to perfectly dial in your coilover setup. You will experience better ride quality in all road conditions.
ApplicationCompatible for Mazda 323 1999-2003
Compatible for Mazda Protegé 1999-2003
Compatible for Mazda Protegé5 1999-2003
Compatible for Mazdaspeed Protegé 1999-2003
Compatible for Mazda Isamu Genki (Taiwan) 1999-2003
Compatible for Mazda Allegro 1999-2003
Compatible for Ford Activa 1999-2003
Compatible for Ford Laser (KN/KQ) 1999-2003
Compatible for Ford Tierra 1999-2003
for Haima Family (China) 1999-2003
for Haima Happin (China)
1999-2003 SpecificationTop mounts: front pillow ball top mount with camber plate rear pillow ball top mount Damping: 24 levels rebound damping adjustable Spring rate Rear: 6 kg/mm (336 lbs/in) Spring length Front: 200mm Spring length Rear: 230mm Adjustable height: lowering 1-3 inch Coilover overall length Front: 420mm-520mm Coilover overall length Rear: 520mm-620mm Shock type: Twin tube Spring Preload: 7-10 mm Color: gold Package includedcomplete coilovers 2 front and 2 rear a pair wrench for height adjustment Dimensionweight: 30060g size: 63*50*20 cm Feature1. Lowered height adjustment from 1" - 3" which allow lower center of gravity and also add a more aggressive stance 2. A 24 rebound damping adjustment level allows you the ability to perfectly dial in your coilover setup. You will
experience better ride quality in all road conditions. 3. Twin-Tube structure allows sufficient stroke within the shock absorber. 4. Separate height adjustment does not affect damper stroke. 5. High Tensile performance spring - STRESS TESTED OVER 600, 000 times while the spring distortion is less than 0.04%. Plus, the special surface treatment improves the durability and performance. 6. Height Adjustment tools included. 7. Camber plate top mounts help to eliminate the need for a separate camber kit. 8. Pillow ball top mount - It improves the steering feel and response. 9. Most pieces in our coilover systems, including mounts, collars and spring perches, are designed from 6061-T6 Billet Aluminum resulting in lightweight, durable and rust resistant components. 10. Full rebuildable.
1999-2003 SpecificationTop mounts: front pillow ball top mount with camber plate rear pillow ball top mount Damping: 24 levels rebound damping adjustable Spring rate Rear: 6 kg/mm (336 lbs/in) Spring length Front: 200mm Spring length Rear: 230mm Adjustable height: lowering 1-3 inch Coilover overall length Front: 420mm-520mm Coilover overall length Rear: 520mm-620mm Shock type: Twin tube Spring Preload: 7-10 mm Color: gold Package includedcomplete coilovers 2 front and 2 rear a pair wrench for height adjustment Dimensionweight: 30060g size: 63*50*20 cm Feature1. Lowered height adjustment from 1" - 3" which allow lower center of gravity and also add a more aggressive stance 2. A 24 rebound damping adjustment level allows you the ability to perfectly dial in your coilover setup. You will
experience better ride quality in all road conditions. 3. Twin-Tube structure allows sufficient stroke within the shock absorber. 4. Separate height adjustment does not affect damper stroke. 5. High Tensile performance spring - STRESS TESTED OVER 600, 000 times while the spring distortion is less than 0.04%. Plus, the special surface treatment improves the durability and performance. 6. Height Adjustment tools included. 7. Camber plate top mounts help to eliminate the need for a separate camber kit. 8. Pillow ball top mount - It improves the steering feel and response. 9. Most pieces in our coilover systems, including mounts, collars and spring perches, are designed from 6061-T6 Billet Aluminum resulting in lightweight, durable and rust resistant components. 10. Full rebuildable.
