Introduction A coilover is an automobile suspension device. Thanks to built-in adjustability, coilovers offer the ability to be shortened or lengthened
- lowering or raising the ride height of your vehicle through manual adjustment, without complex electronics or hydraulics. A coilover kit consists of a damper & a shock absorber with a coil spring around it. Maxpeedingrods provides performance aftermarket adjustable coilovers suspension kit compatible for BMW series. You can enjoy a comfortable riding experience in all road conditions. Application Compatible for BMW E39 5-Series Sedan 95-03 Compatible for BMW 540 (with front top mount, but not include in our kit) Note: Not for Wagon or M5 Models Specification Quantity: 2 front+2 rear shocks 2 C- Spanners for adjustment 2 rear Springs Front Bump stops & dust covers Spring rate Front: 7 kg/mm (392 lbs/in) Spring rate Rear: 5 kg/mm (280 lbs/in) Adjustable

Height: Yes
Colour: Golden Warranty: one year warranty for any manufacturing defect Feature- Adjustable ride height- Adjustable pre-load spring tension- Most components are made from 6061 aluminum with T6 for increased hardness -- the advantages include excellent strength, & aluminum helps keep the weight down.- Hi Tensile performance spring
- Under 600, 000 times continuously test, the spring distortion is less than 0.04%. Plus, the special surface treatment is to improve the durability & performance.
- All inserts come with fitted rubber boots to protect the damper & keep clean.- Improve your handling performance without sacrifice comfortable ride.- A fast & affordable way to easily upgrade your car's appearance.- Easy installation with right tools.- Ideal for any track, drift & fast road & can also be used for daily driving. Notice- No Top Mount Included， Modification Required If You Use OE Top Mount- No instruction included; Professional installation is highly recommended.- Please check our store for other auto parts you may be interested in.- Please feel free to contact us for whatever we can help.





...

Introduction A coilover is an automobile suspension device. Thanks to built-in adjustability, coilovers offer the ability to be shortened or lengthened
- lowering or raising the ride height of your vehicle through manual adjustment, without complex electronics or hydraulics. A coilover kit consists of a damper & a shock absorber with a coil spring around it. Maxpeedingrods provides performance aftermarket adjustable coilovers suspension kit compatible for BMW series. You can enjoy a comfortable riding experience in all road conditions. Application Compatible for BMW E39 5-Series Sedan 95-03 Compatible for BMW 540 (with front top mount, but not include in our kit) Note: Not for Wagon or M5 Models Specification Quantity: 2 front+2 rear shocks 2 C- Spanners for adjustment 2 rear Springs Front Bump stops & dust covers Spring rate Front: 7 kg/mm (392 lbs/in) Spring rate Rear: 5 kg/mm (280 lbs/in) Adjustable

Height: Yes
Colour: Golden Warranty: one year warranty for any manufacturing defect Feature- Adjust...



...

Application Compatible for BMW 525i Base Sedan 4-Door 2001-2003 compatible for BMW 525i Base Wagon 4-Door 2001-2003 compatible for BMW 528i Base Sedan 4-Door 1999-2000 compatible for BMW 528i Base Wagon 4-Door 1999-2000 compatible for BMW 530i Base Sedan 4-Door 2001-2003 compatible for BMW 540i Base Sedan 4-Door 1999-2003 compatible for BMW 540i Base Wagon 4-Door 1999-2003 compatible for BMW M5 Base Sedan 4-Door 2000-2003 Interchange Part Numbers 64546921395, 64546921946, 671607555011, 344-55006-200, 8380781, 67458910, BM311310, BM3113109, 1946, 611240, 64 54 6 921 395, 64 54 6 921 946 Note- Please confirm the OEM & Interchange PART NUMBER before Purchasing - Professional installation is highly recommended (No Instruction Included) - For any needs please contact us Warranty: one year warranty for any manufacturing defect ...

Application 2002
- 2005 compatible for BMW 745 With Electronic Damping Control [EDC]
- Rear 2006
- 2008 compatible for BMW


...

Application Compatible for BMW 5 7 Series F01/02/04 F07/F11 2009-20162010
- 2016 Compatible for BMW 535i GT2011
- 2016 Compatible

...

Application Compatible for BMW E30 M3 S14B23 88-91 L4 Specification TÜV Certification Con Rods Type: Forged 4340 aircraft chrome moly quality steel for racing H-beam Conrods Quantity:1 set of 4 pieces Bolts: Including Genuine ARP 2000 bolts Note: Extra cost for upgrading to ARP L19 bolts Bolts

Size: 3/8" ARP 2000 bolts Tolerance: Balanced to +/- 1 gram in set Piston Bolt Hole: +-4/1000mm Power: 600hp ~ 800hp per set Strength of the fastening (PSI): 220, 000/230, 000 PSI Torque: 48ft ≈ 65 NM Top acceleration: 9000rpm warranty: one year Dimensions Center to center length: 144mm Big end diameter: 52mm Small end diameter: 22mm Big end

Width: 24mm Small end

Width: 24mm Feature- Forged SAE 4340 Chrome Moly Steel for the highest strength & durability, dedicated for Racing - Designed & processed by CNC machine. - All big & small ends are finished with SUNNEN honing machine - Precision alignment sleeves positively locate the rod cap, maintaining big end bore size & eliminating cap walk - 100% X-rayed, s...





...

Application Compatible for BMW E30 316/316i/ 318i/ 320i/ 323i/ 325i/ 324D/324TD Saloon 1982.11-1991.1 Notice: Compatible for BMW E30 Saloon 51mm front strut diameter only The coilovers will compatible for BMW E30 316/316i/ 318i/ 320i/ 323i/ 325i/ 324D/324TD Saloon 1982 -1988 models, but it may not lower the car as much as the late model, because the rear chassis is different. Compatible for BMW E30 316 1988.11-1991.1, the coilovers can fit earlier models except 1. Pre 1988 1.6L 1.8L. Specification Quantity:-2 front+2 rear shocks-2 C- Spanners for adjustment-2 rear Springs+2 front Springs-Front Bump stops & dust covers Spring Rate: 7 kg/mm (392 lbs/in) ; 6 kg/mm (336 lbs/in) Damper: Non Adjustable Damper Adjustable

Height: YESWarranty: one year warranty for any manufacturing defect Feature- Adjustable ride height- Adjustable pre-load spring tension- Most components are made from 6061 aluminum with T6 for increased hardness -- the advantages include excellent strength, & aluminum helps keep the...

...

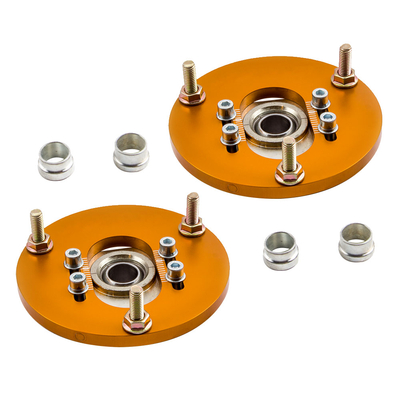

Application Compatible for BMW 3 Series (E36) 1991–1998 Europe Compatible for BMW 3 Series (E36) 1992—1999 US & Canada Compatible for BMW E36 318i, 318is, 318ic, 323i, 323ic, 323is, 325i, 325is, 325ic, 328i, 328is, 328ic, M3（except 318TI Compact） -- For Coilover Only Description Condition: New Quantity: One set with 2 pieces Adjustable Timing Mark: YES Bushing: Pillow Ball deisgn for adjustment precisely
Colour: Golden Warranty: one year warranty for any manufacturing defect Feature
- All components are carefully selected with the qualitymaterial for durable use
- Super strong & significant improvement for driftingcars- Adjust camber independent of caster- Large range of adjustment while still allowing caster andcamber to be adjusted from the top without cutting thestrut tower
- Maintain proper strut angle at any position by not pre-setting theangle
- Provide proper orientation with a replaceable urethanebushing- Minimize noise associated with the urethane bushing Notice
- With pillow ball...





...

Application ALL compatible for BMW E36 3 Series 318, 320, 323, 325, 328, M3 I, IC, IS, TI -- For Coilover Only Specifications Quantity: One set with 2 pieces Adjustable Timing Mark: YES Bushing: Pillow Ball deisgn for adjustment precisely
Colour: Blue Warranty: one year warranty for any manufacturing defect Condition: New Features
- All components are carefully selected with the quality material for durable use- Super strong & significant improvement for drifting cars
- Adjust camber independent of caster- Large range of adjustment while stillallowing caster & camber to be adjusted from the top without cutting the struttower
- Maintain proper strut angle at any position by not pre-setting the angle
- Provide proper orientation with a replaceable urethane bushing
- Minimize noise associated with the urethane bushing Notice
- With pillow ball bushing, these camber plates will NOT fit OEM stock springs. They will fit coilover spring only.
- The picture with

Dimensions is av...









...

Application Compatible for BMW M40/M42/M43/M44 Engine compatible for BMW E30 316i/318i M40B16 M42B18 compatible for BMW E30 318i S M42B18 compatible for BMW E34 518i M40B18 compatible for BMW E36 316i/318i/318ti M40B18 M43B16 M42B18 compatible for BMW E36 318i S M42B18 compatible for BMW E36 318i S/318ti M44B19 Pin Type: Floating Pin Piston Specification* Type: Forged 4340 aircraft chrome moly quality steel for racing *H-beam Conrods Quantity: 4 Pieces as showing in picture * Bolts: Including ARP 2000 3/8" bolts  (Note: Extra cost for upgrading to ARP L19 bolts) * The connecting rods all include ARP 2000 bolts, which are rated at 220, 000 psi, & the optional ARP L19 material at 260, 000 psi is available as an upgraded product. * Advertised Horsepower Rating:200HP/piece * Top acceleration: 9000rpm *package size：28CM*21CM*10CMDimension Center to center length:140mm/5.512" Big end diameter:48mm/1.89" Small end diameter:22mm/0.866" Big end
Width:21.9mm/0.862" Sm...
...
