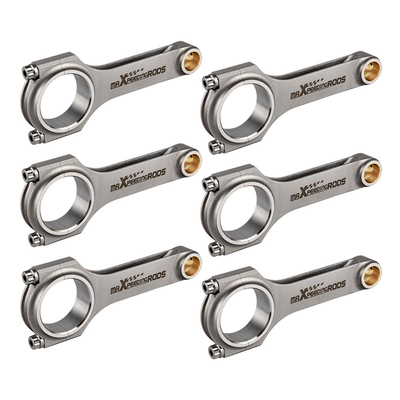

Connecting Rod Rods Compatible For Toyota Supra Soarer MK3 7MGTE
7M-GTE 3.0 ARP Bolts 6x
ApplicationCompatible for Toyota Supra 3.0L MK 3 7M-GTE 1986-1992Compatible for Toyota Soarer 7M-GTE 1986-1991Specification- Performance Con Rods- Type: Forged 4340 aircraft chrome moly quality steel for racing- H-beam Conrods Quantity: 6 Pieces a set- Bolts: Including ARP 2000 bolts- Note: Extra cost for upgrading to ARP L19 bolts- Bolts Size: 3/8" - Tolerance: Balanced to +/- 1 gram in set - Piston Bolt Hole: +-4/1000mm - Power: 600hp ~ 800PS per set - Strength of the fastening (PSI): 220, 000/230, 000 PSI Torque: 48ft ≈ 65 NM - Top acceleration: 9000rpm DimensionsCenter to center length: 152mmBig end diameter: 55mmSmall end diameter: 22mmBig end width: 24.8mmSmall end width: 24.8mmFeature- Forged SAE 4340 Chrome Moly Steel for the highest strength and durability, dedicated for
Racing- Designed and processed by CNC machine.- All big and small ends are finished with SUNNEN honing machine- Precision alignment sleeves positively locate the rod cap, maintaining big end bore size and eliminating cap walk- 100% X-rayed, sonic tested and magnafluxed- Multi-stage heat treated- Shot peened to relieve stress- Come with the bronzed bushing suitable for the floating piston pinNote- Professional installation is highly recommended (No Instruction Included)- Custom Service:If there's no conrods you need on our site, we would be happy to help determine your requirements and develop a solution with you to satisfy your needs. Warranty: one year warranty for any manufacturing defect
Racing- Designed and processed by CNC machine.- All big and small ends are finished with SUNNEN honing machine- Precision alignment sleeves positively locate the rod cap, maintaining big end bore size and eliminating cap walk- 100% X-rayed, sonic tested and magnafluxed- Multi-stage heat treated- Shot peened to relieve stress- Come with the bronzed bushing suitable for the floating piston pinNote- Professional installation is highly recommended (No Instruction Included)- Custom Service:If there's no conrods you need on our site, we would be happy to help determine your requirements and develop a solution with you to satisfy your needs. Warranty: one year warranty for any manufacturing defect
