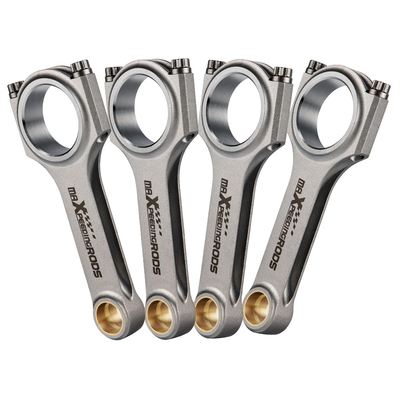

Compatible For Kawasaki ZX-10R 2004-2009 W/ ARP Bolts H-Beam
Connecting Rods
ApplicationCompatible for Kawasaki ZX-10R 2004 - 2009SpecificationType: Forged 4340 aircraft chrome moly quality steel for racingH-beam Conrods Quantity: 4 Pieces a setBolts: Including Genuine ARP 2000 boltsNote: Extra cost for upgrading to ARP L19 boltsBolts Size: 5/16"Tolerance: Balanced to +/- 1 gram in set Piston Bolt Hole: +-4/1000mm Power: 600hp ~ 800hp per set Strength of the fastening (PSI): 200, 000/230, 000 PSI Torque: 48ft ≈ 65 NM Top acceleration: 7000-9000rpm warranty: one year warranty for any manufacture defectDimensionsCenter to center length: 106.63mmBig end diameter: 37.501mmSmall end diameter: 17.02mmBig end width: 20.9mmSmall end width: 16mmFeature- Forged SAE 4340 Chrome Moly Steel for the highest strength and durability, dedicated for Racing- Designed and processed
by CNC machine.- All big and small ends are finished with SUNNEN honing machine- Precision alignment sleeves positively locate the rod cap, maintaining big end bore size and eliminating cap walk- 100% X-rayed, sonic tested and magnafluxed- Multi-stage heat treated- Shot peened to relieve stress- Come with the bronzed bushing suitable for the floating piston pinNoteProfessional installation is highly recommended (No Instruction Included)Custom Service:If there's no conrods you need on our site, we would be happy to help determine your requirements and develop a solution with you to satisfy your needs. Learn more about CUSTOM SERVICE
by CNC machine.- All big and small ends are finished with SUNNEN honing machine- Precision alignment sleeves positively locate the rod cap, maintaining big end bore size and eliminating cap walk- 100% X-rayed, sonic tested and magnafluxed- Multi-stage heat treated- Shot peened to relieve stress- Come with the bronzed bushing suitable for the floating piston pinNoteProfessional installation is highly recommended (No Instruction Included)Custom Service:If there's no conrods you need on our site, we would be happy to help determine your requirements and develop a solution with you to satisfy your needs. Learn more about CUSTOM SERVICE
