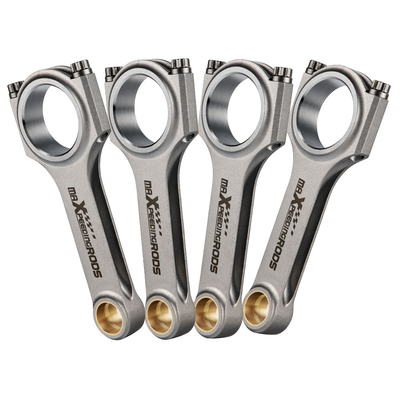

Compatible For BMW 2002 Ti / Ii Turbo M10 135mm Forged Conrods
Connecting Rods
ApplicationCompatible for BMW 2002 Ti / ii Turbo M10 Engine 135mmCompatible for BMW 1962-1988 M10 Engine 135mmCompatible for BMW 2 Series 2002 Tii M10Specification- Type: Forged 4340 aircraft chrome moly quality steel for racing- H-beam Conrods Quantity: 4 Pieces a set- Bolts:Including Genuine ARP 2000 bolts- Note: Extra cost for upgrading to ARP L19 bolts - Bolts Size: ARP 2000 3/8" bolts- Tolerance: Balanced to +/- 1 gram in set - Piston Bolt Hole: +-4/1000mm - Advertised Horsepower Rating:200HP/piece- Strength of the fastening (PSI): 220, 000/230, 000 PSI Torque: 48ft ≈ 65 NM - Top acceleration: 9000rpm - Warranty: one year warranty for any manufacturing defectDimensionsCenter to center length: 135mm/5.315"Big end diameter: 52mm/2.047"Small end diameter: 22mm/0.866"Big end width:
23.876mm/0.94"Small end width: 23.88mm/0.94"Feature-Forged SAE 4340 Chrome Moly Steel for the highest strength and durability, dedicated for Racing-Designed and processed by CNC machine.-All big and small ends are finished with SUNNEN honing machine-Precision alignment sleeves positively locate the rod cap, maintaining big end bore size and eliminating cap walk-100% X-rayed, sonic tested and magnafluxed-Multi-stage heat treated-Shot peened to relieve stress-Come with the bronzed bushing suitable for the floating piston pinNote- Professional installation is highly recommended (No Instruction Included)- Custom Service:If there's no conrods you need on our site, we would be happy to help determine your requirements and develop a solution with you to satisfy your needs.
23.876mm/0.94"Small end width: 23.88mm/0.94"Feature-Forged SAE 4340 Chrome Moly Steel for the highest strength and durability, dedicated for Racing-Designed and processed by CNC machine.-All big and small ends are finished with SUNNEN honing machine-Precision alignment sleeves positively locate the rod cap, maintaining big end bore size and eliminating cap walk-100% X-rayed, sonic tested and magnafluxed-Multi-stage heat treated-Shot peened to relieve stress-Come with the bronzed bushing suitable for the floating piston pinNote- Professional installation is highly recommended (No Instruction Included)- Custom Service:If there's no conrods you need on our site, we would be happy to help determine your requirements and develop a solution with you to satisfy your needs.
