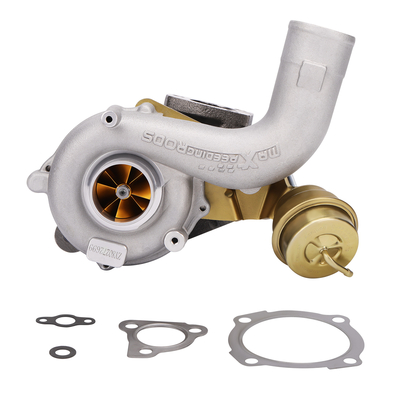

Compatible For Audi A3 Upgraded Engine FT 190 4EB/4EA/4EC 1996-2009
Turbocharger With Billet Compressor Wheel

Product Description

Application K04 model: Compatible for Audi A3 upgraded Engine FT 190 4EB/4EA/4EC 1999-2009 Compatible for Audi TT upgraded Engine FT 190 4EB/4EA/4EC 2001-2009 Compatible for Volkswagen BEETLE, compatible for Seat IBIZA upgraded Engine 4EB/4EA/4EC 1996-2009 Note: The Car Make with K03 Model as below Need modify the intake pipe (our K04 compressor inlet is bigger than K03 model）: 1. Compatible for Audi A3 with AGU, ALN, ARZ engine 110 KW, 150 PS 1996-20032. Compatible for Audi A3 with AUQ, ARZ, APPengine 132 KW, 180 PS 1996-2003 3. Compatible for Audi TT with AUQengine 132 KW, 180 PS 1998-20064. Compatible for Seat Leon with AJQ; APP; ARY; AUQ engine 132 KW, 180 PS 1998-20065. Compatible for Skoda Octavia AUQ engine 132 KW, 180 PS 2001–20056. Compatible for Volkswagen Golf/ Bora/ Jetta with AUQ, ARZ Engine 2000-20097. Compatible for Volkswagen New Beetle with 1.8L-5V langs, along Engine 2000-05*IMPORTANT NOTICE:1. This is an upgraded K04 turbo for K03-053 & K03 -052. Do not for K04-022.2.K04 -001 turbo is different from K03-052 ＆ K03-053（1）some modification are needed，compressor intake size is bigger than K03-052 or K03-053 K03-052 ＆K03-053 compressor intake size is 45mm K04-001 compressor intake size is 48.7mm（2） Silicone hose may need for K04-001 compressor intake connection.3. Make sure your OE number is correct for K04-001, K03-052 & K03-053OE/ Part number K04-001 part number/OE number:53049500001, 5304-950-0001, 5304 950 0001, 53049887501, 5304-988-7501, 5304 988 7501, 06A-145-705HP, 06A145705HP, *IMPORTANT NOTICE: This is an upgraded K04 turbo for K03-053 & K03 -052 (few modification may need for K03-052)K03-052 Part/OE number:53039700052, 5303 970 0052, 5303-970-0052, 53039880052, 5303 988 0052, 5303-988-0052, 53039880094, 5303 988 0094, 5303-988-0094, 06A145704T, 06A145713D, 06A145713DX, 06A145713DV, 06A145713F, 06A145713FX, 8299299564, 8299299564, K03-053 Part/OE number:53039880053, 5303 970 0053, 5303-970-0053, 53039880058, 5303 988 0058, 5303-988-0058, 06A145681H, 06A145702P, 06A145704S, 06A145713B, 06A145713L, 06A145713M, Specification Turbo Model: K04-001 Engine Model: 1.8L-5V Engine Code:AJQ, APP, AUM, AUQ, ARYCooling Type: Water & Oil Cooled Bearing Type: Journal Bearing / Floating Bearing Thrust bearings: 270 Degrees Horsepower: 162KW/220PSTurbo Type: Individual Universal Fitment: No Finish: Matte Condition: 100% Brand New Accessories: You will receive the parts exactly as shown in the picture above. Package
Size:30 x 27 x 24cm Package Weight: 6900g Package included 1x Turbocharger 2x Flange gasket 2x Oil port gaskets 1x Manual 1x Brochure 1x Sticker Feature* Product Material 1. Turbine housing ： Silicon-Molybdenum
- temperature resistant up to 850℃2. Steel Turbine Wheel：K419 alloy
- high oxidation stability & resistanceupto 1000℃3. Compressor housing：ZL104 aluminum with lightweight 4. Billet compressor wheel：forged full-machined billet aluminum compressor wheels with a larger horsepower range & better boost response* Product Performance 1. OEM fitment turbo with upgraded material & performance 2. Excellent high temperature resistance，high efficiency & durability 3. Rich experience in turbo production & own factory 4. High-Speed oil seal ring & Precision clearance* Technology Advantage: 1. 100% balancing Test by TURBOTECHNICSVSR32.G3-min-Flow VNT Turbo testing 3. Advanced Actuator Tester/ Programmer Note* Please confirm your original turbo PART NUMBER before Purchasing* Professional installation is highly recommended * Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed & eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)! Warranty: one year warranty for any manufacturing defect
