Introduction MXR-B2 series (also called MXR-SNA) coilovers are designed as an entry level for street use. It features with full length height adjustable & adjustable camber plates (applicable for some vehicles), which offers you a lowered stance, enhanced performance for your daily use vehicle. Application Compatible for TOYOTA ALTEZZA AS200 1998.10-2005.07JPN GXE10 Compatible for TOYOTA ALTEZZA RS200 1998.10-2005.07JPNSXE10 Compatible for LEXUS IS300 2000-2005 USA JCE10L （INCL SPORTS CROSS (5DR) ） Compatible for LEXUS IS 200 1999.4
- 2005.7 GXE10（INCL SPORTS CROSS (5DR) ） Compatible for TOYOTA MARK II 2000.10-2004.11 JPN JZX110 GRANDE IR-V, GRANDE G-TB Compatible for TOYOTA MARK II BLIT 2002.01-2007.05JPN JZX110W 2.5IR-V, 2.5IR-S Specification Top mounts: rubber top mounts Damping: not available Spring rate: front 12kg/mm Spring rate: rear 10kg/mm Adjustable

Height: Yes lowering 1'' to 3'' Shock type: Twin tube Spring Preload: 7-10 mm
Colour: red Package includedcomplete coilovers 2 front & 2 rear a pair wrench for height adjustment Dimensionweight: 24940g

Size: 71*51*21 cm Feature 1. Lowered height adjustment from 1''-3'' which allow lower center of gravity & also add a more aggressive stance 2. Rubber top mounts help to deliver a smooth & forgiving ride for city use at any speed & rubber joints assist in absorbing hard impacts. 3. Twin-Tube structure allows sufficient stroke within the shock absorber 4. Separate height adjustment does not affect damper stroke 5. High Tensile performance spring – STRESS TESTED OVER 600, 000 times while the spring distortion is less than 0.04%. Plus the special surface treatment improves the durability & performance. 6. Height Adjustment tools included 7. Most pieces in our Coilover systems, including mounts, collars & spring perches, are designed from 6061-T6 Billet Aluminum resulting in lightweight, durable & rust resistant components. 8. Full rebuildable Warranty: one year warranty for any manufacturing defect





...

Introduction MXR-B3 series (also called MXR-SLC) based on MXR-B2 series (also called MXR-SNA) coilovers, which is also height adjustable but adds damping adjustment ability by a knob the top of the shaft. They are also made for street use, but the 24 level rebound damping control allows you the ability to perfectly dial in your coilover setup. You will experience better ride quality in all road conditions. Application Compatible for SUBARU IMPREZA WRX 2000.08-2007.06 GDA GD9 GGACompatible for SUBARU IMPREZA WRX STI 2000.10-2004.06 GDB (RIM P.C.D.=100) Compatible for SAAB 9-2X 2005-2007 GGA GGENotice: The coilovers kit will " Lower your car" & does not keep to the original ride height. Specification Top mounts: Pillow ball top mounts Damping: 24 levels rebound damping adjustable Adjustable

Height: Yes, lowering 1" to 3" Adjustable camber plate: Front only Spring rate Front: 9 kg/mm (504 lbs/in) Spring rate Rear: 7 kg/mm (392 lbs/in) Shock type: Twin tube Spring Preload: 7-10 mm
Colour: Gray Package includedproduct included: complete coilovers 2 front & 2 rear Dimension
Size: 71*51*21 cm Weight: 29.7kg Feature Lowered height adjustment from 1"
- 3" which allow lower center of gravity & also add a more aggressive stance.A 24 rebound damping adjustment level allows you the ability to perfectly dial in your coilover setup. You will experience better ride quality in all road conditions. Pillow ball top mount
- It improves the steering feel & response. Camber plate top mounts help to eliminate the need for a separate camber kit. Twin-Tube structure allows sufficient stroke within the shock absorber. Complete Suspension Kit of 4 Shock Absorbers 4 Springs for an easy installation. Separate height adjustment does not affect damper stroke. Height can be adjusted with coilovers installed on the vehicle. High Tensile performance spring
- STRESS TESTED OVER 600, 000 times while the spring distortion is less than 0.04%. Plus the special surface treatment improves the durability & performance. Height Adjustment tools included. Full rebuildable. Warranty: one year warranty for any manufacturing defect






...

Application Compatible for LEXUS ES350 2007
- 2009 All Modelsfor compatible for TOYOTA AVALON 2006 Built After 12/05 Production
...

Application Compatible for HONDA CIVIC VIII 2-door coupe (FG1/FG2) 2006-2011 Compatible for HONDA CIVIC VIII 4-door sedan (FA1/FA2/FA3/FA4/FA5, North America only) 2006-2011 Compatible for HONDA CIVIC VIII 4-door sedan (FD1/FD2/FD3/FD4/FD6/FD7, International model) 2006-2011 Compatible for Acura CSX 4-door sedan（ Canada）2006-2011NOTE: not for the Si / Mugen trim level Notice: The coilovers kit will " Lower your car" & does not keep to the original ride height. Specification Quantity: 2 pieces front + 2 pieces rear（ Split rear shock absorber） Front Spring Rate: 7 kg/mm (392 in/lbs) Rear Spring Rate: 6 kg/mm (336 in/lbs)
Colour: Golden Damper: 24 ways adjustable damper force Adjustable

Height: YESAdjustable Camber Plate: Yes, with Pillow ball top mount Warranty: one year warranty for any manufacturing defect These Coilovers are " Lowering Kit" & DOES NOT adjust to Factory Ride Height. No drilling, cutting, or modification necessary.SPECIAL NOTES: Prior to installation, verify all hardware & properly tighten. Features- Able to lower ride height by 1''-3''; allows user to have a more aggressive stance.- Coilovers are 24-way adjustable. Rebound & Dampening adjustment which allows the user the ability to dial in your coilovers to any driving needs. The user can enjoy a comfortable riding experience in all road conditions.- Pillow ball top mount -- this design helps combat noise while tuning. It also improves the steering feel & response.- Twin-Tube Shock design is used for low internal frictional resistance in order to increase efficiency & keep shock temps low.- Height adjustment does not sacrifice damper stroke length.- These coilovers are able to have their height adjusted without being taken out of the car.- High Tensile strength performance spring---Tested under a 600, 000 time continuous compression test, the spring distortion was less than 0.04%. Plus, the special surface treatment improves the durability & performance.- Adjustment tools included in the kit. Notice- Please double confirm before placing order.- No instruction included; Professional installation is highly recommended.- Please check our store for other auto parts you may be interested in.- Please feel free to contact us for whatever we can help.


...

Introduction MXR-B3 series (also called MXR-SLC) based on MXR-B2 series (also called MXR-SNA) coilovers, which is also height adjustable but adds damping adjustment ability by a knob the top of the shaft. They are also made for street use, but the 24 level rebound damping control allows you the ability to perfectly dial in your coilover setup. You will experience better ride quality in all road conditions. Application Compatible for Hyundai Tiburon 2nd. Gen 2003-2008 US Model compatible for Hyundai Coupe 2002–2009 (Europe & Middle East) Compatible for Hyundai Tuscani 2003-2008 (South Korean) Specification Top mounts: Front OE top mounts required Damping: 24 levels rebound damping adjustable Spring rate Front: 7 kg/mm (392 lbs/in) Spring rate Rear: 6 kg/mm (336 lbs/in) Adjustable camber plate: No Adjustable

Height: Yes lowering 1" to 3" Shock type: Twin tube Spring preload: 7-10 mm
Colour: Gold Package includedproduct included: 2 piece front + 2 pieces rear as pictures show Dimension
Size: 63*51*21 cm Weight: 25.88kg Feature Lowered height adjustment from 1"
- 3" which allow lower center of gravity & also add a more aggressive stance A 24 rebound dampening adjustment level allows you the ability to perfectly dial in your coilover setup. You will experience better ride quality in all road conditions. Twin-Tube structure allows sufficient stroke within the shock absorber. Separate height adjustment does not affect damper stroke. Height can be adjusted with coilovers installed on the vehicle. High Tensile performance spring
- STRESS TESTED OVER 600, 000 times while the spring distortion is less than 0.04%. Plus the special surface treatment improves the durability & performance. Height Adjustment tools included. Pillow ball top mount
- It improves the steering feel & response. Most pieces in our Coilover systems, including mounts, collars & spring perches, are designed from 6061-T6 Billet Aluminum resulting in lightweight, durable & rust resistant components. Full rebuildable. Warranty: one year warranty for any manufacturing defect






...

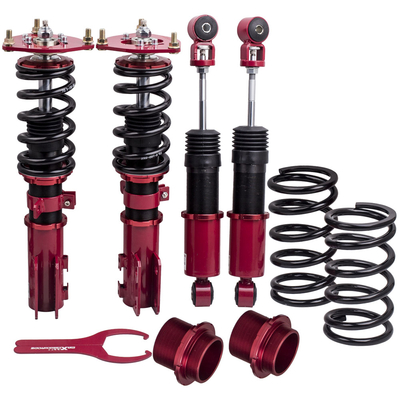

Introduction MXR-B2 series (also called MXR-SNA) coilovers are designed as an entry level for street use. It features with full length height adjustable & adjustable camber plates (applicable for some vehicles), which offers you a lowered stance, enhanced performance for your daily use vehicle. Application Compatible for Hyundai Veloster (FS) 2013-2015 Specification Top mounts: front pillow ball top mount with camber plate rear no top mounts included Damping: not available Spring rate: front 8kg/mm rear 6kg/mm Adjustable

Height: Yes lowering 1" to 3" Shock type: Twin tube Spring Preload: 7-10 mm
Colour: gold Package includedcomplete coilovers 2 front & 2 rear a pair wrench for height adjustment Dimensionweight: 25280g

Size: 63*51*21 cm Feature 1. Lowered height adjustment from 1"
- 3" which allow lower center of gravity & also add a more aggressive stance 2. Twin-Tube structure allows sufficient stroke within the shock absorber. 3. Separate height adjustment does not affect damper stroke. 4. High Tensile performance spring
- STRESS TESTED OVER 600, 000 times while the spring distortion is less than 0.04%. Plus, the special surface treatment improves the durability & performance. 5. Height Adjustment tools included. 6. Camber plate top mounts help to eliminate the need for a separate camber kit. 7. Pillow ball top mount
- It improves the steering feel & response. 8. Most pieces in our coilover systems, including mounts, collars & spring perches, are designed from 6061-T6 Billet Aluminum resulting in lightweight, durable & rust resistant components. 9. Full rebuildable. Warranty: one year warranty for any manufacturing defect







...

Application Compatible for Porsche Cayenne 2002-2010 (955 957 body) Specification Quantity:2 piece front + 2 pieces rear Spring rate Front:20 kg/mm (1120 lbs/in) Spring rate Rear:8 kg/mm (448 lbs/in) Damper: Nonadjustable damper Adjustable
Height: Yes Adjustable camber plate: No Warranty:one year warranty for any manufacturing defect Feature* Adjustable ride height* Adjustable pre-load spring tension* Pillow ball top mount -- this design helps combat noise while tuning. It also improves the steering feel & response* Most components are made from 6061 aluminum with T6 for increased hardness -- the advantages include excellent strength, & aluminum helps keep the weight down.* Hign Tensile performance spring
- Under 600, 000 times continuously test, the spring distortion is less than 0.04%. Plus, the special surface treatment is to improve the durability & performance.* All inserts come with fitted rubber boots to protect the damper & keep clean.* Improve your handling performance without sacrifice comfortable ride.* A fast & affordable way to easily upgrade your car's appearance.* Easy installation with right tools.* Ideal for any track, drift & fast road & can also be used for daily driving. Notice- Please double confirm before ordering.- No instruction included; Professional installation & alignment suggested.- Please check our store for other auto parts you may be interested in.- For any needs please contact us.

...

Application Compatible for Porsche Cayenne 2002-2010 (955 & 957 body) Specification Quantity:2 piece front + 2 pieces rear Spring rate Front:20 kg/mm (1120 lbs/in) Spring rate Rear:8 kg/mm (448 lbs/in) Damper: Non adjustable damper Adjustable
Height: Yes Adjustable camber plate: No Warranty:one year warranty for any manufacturing defect Feature* Adjustable ride height * Adjustable pre-load spring tension * Pillow ball top mount -- this design helps combat noise while tuning. It also improves the steering feel & response * Most components are made from 6061 aluminum with T6 for increased hardness -- the advantages include excellent strength, & aluminum helps keep the weight down. * Hign Tensile performance spring
- Under 600, 000 times continuously test, the spring distortion is less than 0.04%. Plus, the special surface treatment is to improve the durability & performance. * All inserts come with fitted rubber boots to protect the damper & keep clean. * Improve your handling performance without sacrifice comfortable ride. * A fast & affordable way to easily upgrade your car's appearance. * Easy installation with right tools. * Ideal for any track, drift & fast road & can also be used for daily driving. Notice-No instruction included; Professional installation & alignment suggested. -Please check our store for other auto parts you may be interested in. -Please feel free to contact us for whatever we can help.

...

Application Compatible for Toyota Yaris Sedan / Vios 2013+ Specifications Quantity: 2 pieces front + 2 pieces rear + 2 pieces spanner wrenches Damper: Non Adjustable Damper Front spring rate:6 kg/mm (336 in/lbs) Rear spring rate: N/A Height adjustable:YES Warranty: one year warranty for any manufacturing defect Feature- Adjustable ride height
- Adjustable pre-load spring tension
- Most components are made from 6061 aluminum with T6 for increased hardness -- the advantages include excellent strength, & aluminum helps keep the weight down.
- Hi Tensile performance spring
- Under 600, 000 times continuously test, the spring distortion is less than 0.04%. Plus, the special surface treatment is to improve the durability & performance.
- All inserts come with fitted rubber boots to protect the damper & keep clean.
- A fast & affordable way to easily upgrade your car's appearance.
- Easy installation with right tools. Note No instruction included; Professional installation & alignment suggested. Please check our store for other auto parts you may be interested in. Please feel free to contact us for whatever we can help.






...

Application Compatible for MITSUBISHI ECLIPSE 1995-1999USA D38A CONVERTIBLE, 4CYL/TURBO Compatible for MITSUBISHI ECLIPSE 1995-1999USA D33A 4CYL/TURBO Compatible for MITSUBISHI ECLIPSE 1995-1999USA D32A 4CYL/TURBO Compatible for MITSUBISHI ECLIPSE 1995-1999USA D31A4CYL/NON TURBO Specification Top mount: front camber plate; rear rubber Damping: 24 levels rebound damping adjustable Front Spring Rate:12kg/mm (672 lbs/in) Rear Spring Rate: 9kg/mm (504lbs/in) Spring length Front: 190mm Spring length Rear: 190mm Coilover overall length Front: 445mm-495mm Coilover overall length Rear: 485mm-575mm Adjustable

Height: Yes lowering 1" to 3" Spring Preload: 7-10 mm Shock type： Twin tube
Colour: red body with black spring Package included Complete coilovers assembly 2 front & 2 rear A pair wrench for height adjustment Dimension Package dimension: 63*51*21 Weight: 25260g Feature 1. Lowered height adjustment from 1"
- 3" which allow lower center of gravity & also add a more aggressive stance. 2. A 24 rebound damping adjustment level allows you the ability to perfectly dial in your coilover setup. You will experience better ride quality in all road conditions. 3. Camber plate top mounts help to eliminate the need for a separate camber kit. 4. Twin-Tube structure allows sufficient stroke within the shock absorber. 5. Complete Suspension Kit of 4 Shock Absorbers & 4 Springs for an easy installation. 6. Separate height adjustment does not affect damper stroke & height can be adjusted with coilovers installed on the vehicle. 7. High Tensile performance spring
- STRESS TESTED OVER 600, 000 times while the spring distortion is less than 0.04%. Plus the special surface treatment improves the durability & performance. 8. Most pieces in our coilover systems, including mounts, collars & spring perches, are designed from 6061-T6 Billet Aluminum resulting in lightweight, durable & rust resistant components. 9. Steel shock bodies with special surface treatment to improve the durability. 10. Full rebuildable Warranty: one year warranty for any manufacturing defect




...
