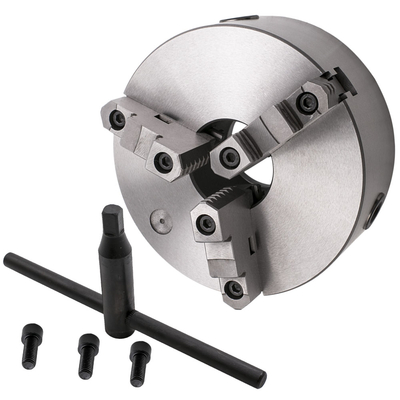

Self-Centering Lathe Chuck 3 Jaw 8 Inch For Milling K11-200A Hardened
Steel
Applicationfor General lathe, economical CNC lathes, grinding machines, milling machines, drilling and machine accessories etc..Specification- Material:Hardened Steel
- Model: K11-200A
- Jaw: 3 Jaw
- High precision: ≤0.05mm
- Application: for CNC Drilling Milling Machine
- Color: Silver
- Lathe Chuck:
- Size: 200 mm (7.9")
- Outside Diameter: 200 mm (7.9")
- Bolt Circle Diameter: 180 mm (7.08")
- Center Thru Hole Diameter: 65 mm (2.559")
- Chuck Body Thickness: 75 mm (2.95")
- Internal Jaw Clamping Range (A-A1): 4-85 mm (0.16"-3.35")
- Internal Jaw Jamming Range (B-B1): 65-200 mm (2.56"-7.87")
- External Jaw Clamping Range (C-C1): 65-200 mm (2.56"-7.87")
- Mounting Thread: 3-M10
- Accuracy: 0.002"
- Package Includes:
1 x Three Jaw Self Centering Chuck
3 x Bolts Circle
1 x
HandleNotePlease feel free to contact us for whatever we can help.Warranty: one year warranty for any manufacturing defect
HandleNotePlease feel free to contact us for whatever we can help.Warranty: one year warranty for any manufacturing defect
