Application 1986-1989– Compatible for Suzuki Swift GTi AA33S
1989-1994– Compatible for Suzuki Cultus GTi AA34S (113HP)
1990– Compatible for Suzuki Cultus AB34S
1989– Compatible for Suzuki Swift AC34S DOHCSpecification Performance Con Rods
Type: Forged 4340 aircraft chrome moly quality steel for racing

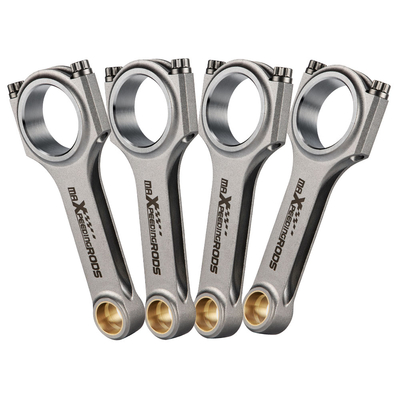

H-beam Conrods Quantity: 4 Pieces as showing in picture
Bolts: Including ARP 2000 bolts
Note: Extra cost for upgrading to ARP L19 bolts
Bolts
Size: ARP 2000 5/16" bolts
Tolerance: Balanced to +/- 1 gram in set
Piston Bolt Hole: +-4/1000mm
Power: 600hp ~ 800PS per set
Strength of the fastening (PSI): 220, 000/230, 000 PSI Torque: 48ft ≈ 65 NM
Top acceleration: 7000rpm
warranty: one year warranty for any manufacturing defect Dimensions Center to center length: 120mm
Big end diameter: 45mm
Small end diameter: 19mm
Big end
Width:xx
Small end
Width:xx Feature- Forged SAE 4340 Chrome Moly Steel for the highest strength & durability, dedicated for Racing
- Designed & processed by CNC machine.
- All big & small ends are finished with SUNNEN honing machine
- Precision alignment sleeves positively locate the rod cap, maintaining big end bore size & eliminating cap walk
- 100% X-rayed, sonic tested & magnafluxed
- Multi-stage heat treated
- Shot peened to relieve stress
- Come with the bronzed bushing suitable for the floating piston pin Note Professional installation is highly recommended (No Instruction Included)
Custom Service: If there's no conrods you need on our site, we would be happy to help determine your requirements & develop a solution with you to satisfy your needs.
Learn more about CUSTOM SERVICE
