Instructionma Xpeedingrods SP1 lowering coilover, standard with adjustable rebound damping, separate height adjustment without changing preload, developed damping oil & upgraded racing springs, adjustable camber plate（for some vehicles) & decent outlook, offers you more ability to tune your suspension on performance & gives your vehicle more impressive appearance. Besides, all our coilover are assembled in dust-free factory, which turns out good quality & long life. Application Compatiblefor 2009-2010 Dodge Challenger R/T 5.7L V8 RWD, Coupe; Compatiblefor 2009-2010 Dodge Challenger SE 3.5L V6 RWD, Coupe; Compatiblefor 2008-2010 Dodge Challenger SRT8 6.1L V8 RWD, Coupe; Compatiblefor 2006-2007 Dodge Charger Base 2.7L V6 RWD, Sedan; Compatiblefor 2007 Dodge Charger Base 2.7L V6 RWD, Sedan; Compatiblefor 2006 Dodge Charger Daytona R/T 5.7L V8 RWD, Sedan; Compatiblefor 2006-2010 Dodge Charger R/T 5.7L V8 RWD, Sedan; Compatiblefor 2006-2010 Dodge Charger SE 2.7L/3.5L V6, 5.7L V8, RWD, Sedan; Compatiblefor 2006-2010 Dodge Charger SRT8 6.1L V8, RWD, Sedan; Compatiblefor 2006-2010 Dodge Charger SXT 3.5L V6, RWD, Sedan Specification Top mounts front
- pillow ball top mountsrear – rubber top mounts Damping 24 levels rebound damping adjustable Spring rate Front 12 kg/mm (672 lbs/in) Spring rate Rear 14 kg/mm (784 lbs/in) Spring length Front 230mm Spring length Rear 240mm Adjustable height lowering 1-3 inch Coilover overall length Front 510mm-600mm Coilover overall length Rear 570mm-630mm Shock type Twin tube Spring preload 7-10 mm Color black body with blue spring Gross weight 30800g Package size 71*51*21 cm Feature 1. Lowered height adjustment from 1"
- 3" which allow lower center of gravity & also add a more aggressive stance. 2. A 24 rebound damping adjustment level allows you the ability to perfectly dial in your coilover setup. You will experience better ride quality in all road conditions. 3. Pillow ball top mounts improve the steering feel & response. 4. Full length dust boot keeps shaft & oil seal from damage. 5. Upgraded damper adjust knob makes damping setting easier. 6. Upgraded valving for more smooth ride. 7. Twin-Tube structure allows sufficient stroke within the shock absorber. 8. High-Performance Damping Oil--maintains a stable viscosity in a broad temperature range, which sustains smooth stroke & reliable damping force in a variety of circumstances. 9. High Tensile performance spring
- STRESS TESTED OVER 600, 000 times while the spring distortion is less than 0.04%. 10. Decent appearance benefits from CNC machined parts & special surface treatment. 11. Most pieces in our coilover systems, including mounts, collars & spring perches, are made from 6061-T6 Billet Aluminum resulting in light weight, durable & rust resistant components. 12. Complete Suspension Kit of 4 Shock Absorbers 4 Springs for an easy installation. 13. Separate height adjustment does not affect damper stroke & height can be adjusted with coilovers installed on the vehicle. 14. All coilovers were produced & assembled at dust-free factory which guaranteed the highest quality. Package included - Complete coilovers for 2 front & 2 rear - A pair of wrenches for height adjustment - Installation Instructions Warranty: one year warranty for any manufacturing defect


...

Application Compatible for Holden Commodore VE Sedan 2006-2013 compatible for Holden Commodore VE Wagon 2008-2013 compatible for Holden Commodore VEUte 2007-2013 Specification Top mounts: Front & rear OE top mounts required Damping: not available Shock type: Twin tube Adjustable camber plate: No Spring preload: 7-10 mm Spring rate Front: 7 kg/mm (392 lbs/in) Spring rate Rear: 11 kg/mm (616 lbs/in) Spring length Front: 200mm Spring length Rear: 185mm Adjustable

Height: lowering 1-3 inch Coilover overall length Front: 430mm-510mm Coilover overall length Rear: 405mm-445mm
Colour: golden Package includedproduct included: springs & shocks for front & rear, no top mounts included Dimension
Size: 63*51*21 cm Weight: 24.5kg Feature 1. Lowered height adjustment from 1"
- 3" which allow lower center of gravity & also add a more aggressive stance 2. Adjustable pre-load spring tension to reduce the shaking motion to a certain extent 3. Adjustable Camber Plate & Pillow ball top mount for sharpening steering response. (for some models) 4. CNC machined Aluminumtop mounts & lockers--
- excellent strength, & save weight 5. Heavy Duty Steel Lower Mounts--- Highly Durable & Reliable 6. High tensile spring---600, 000 times continuously test to assure it's high tensile strength. 7. All inserts come with fitted long rubber boots--- To protect the damper more well & be durable. 8. Twin-Tube structure ---provides excellent handling & control characteristics for most driving conditions 9. Corrosion Finish
- Anodized Aluminum & Powder Coated Carbon Steel Parts






...

Introduction Maxpeedingrods' street coilovers are designed & developed for all motoring enthusiasts that want excellent handling without sacrificing comfort. This suspension system is ideal for daily driving & occasional, light track use. High quality components are adopted to ensure product durability & stability. Each application is fully test fitted & completely road tested to guarantee all our customers perfect performance & comfort expectations. Application Compatible For Holden Commodore VE Sedan 2006-2013 Compatible For Holden Commodore VE Wagon 2008-2013 Compatible For Holden Commodore VEUte 2007-2013 Notice: The coilovers kit will " Lower your car" & does not keep to the original ride height.

Specification- Shock type: Twin tube- Spring preload: 7-10 mm- Spring rate Front: 7 kg/mm (392 lbs/in)- Spring rate Rear: 8 kg/mm (448 lbs/in)- Spring length Front: 200mm- Spring length Rear: 185mm- Adjustable

Height: lowering 1-3 inch- Coilover overall length Front: 430mm-510mm- Coilo...



...

Introduction MXR-B2 coil-overs are designed as entry-level for street use. It features height adjustable & adjustable camber plates (applicable for some vehicles), which offer you a lowered stance, & enhanced performance for your daily use vehicle. Application Compatible for HONDA CIVIC & Si VIII 2-door coupe (FG1/FG2) 2006-2011 compatible for HONDA CIVIC & Si VIII 4-door sedan (FA1/FA2/FA3/FA4/FA5, North America only) 2006-2011 compatible for HONDA CIVIC & Si VIII 4-door sedan (FD1/FD2/FD3/FD4/FD6/FD7, International model) 2006-2011 compatible for Acura CSX 4-door sedan（ Canada）2006-2011 Note: not for the Mugen trim level. Specification Front top mount: Pillow ball with camberplate Rear top mount: OE top mount required Damping adjustable: Not available Height adjustable: Yes, lowering 25-75mm depending on the vehicle models Camber adjustable: Available Spring rate Front: 7 kg/mm (392 lbs/in) Spring rate Rear: 6 kg/mm (336 lbs/in) Front spring inner diameter: 70.5mm Rear spring inner d... ...

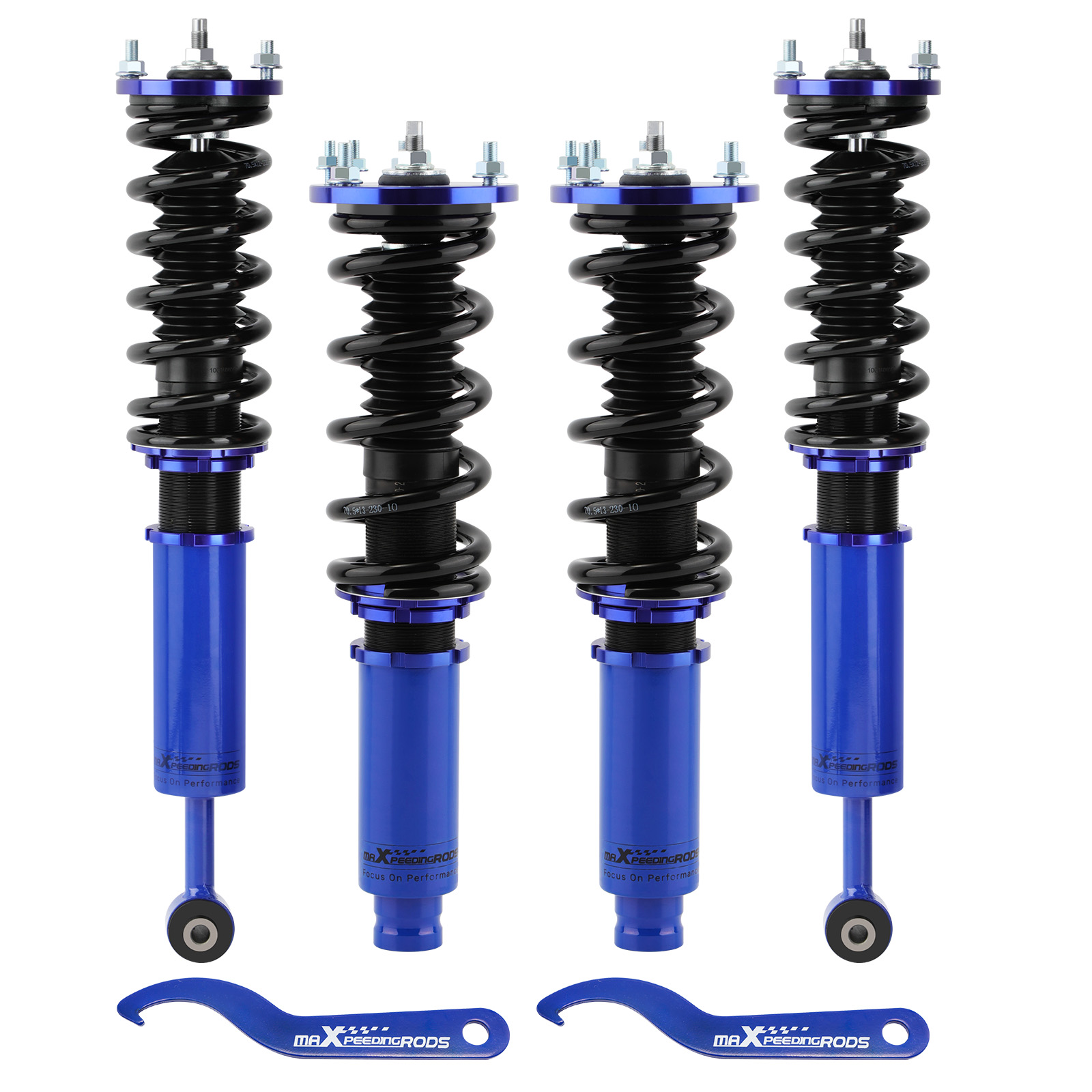

Introduction MXR-B2 series (also called MXR-SNA) coilovers are designed as an entry level for street use. It features with full length height adjustable & adjustable camber plates (applicable for some vehicles), which offers you a lowered stance, enhanced performancefor your daily use vehicle. Application Compatible for ACURA TL IIUA5 1999-2003 USA including type s Compatible for ACURA CL II YA42001-2003 USA Compatible for HONDA ACCORD VI 4-door sedan CG1 CG5 CG6 1998-2002 USA Compatible for HONDA ACCORD VI 2-door coupe CG2 CG31998-2002 USANotice: The coilovers kit will " Lower your car" & does not keep to the original ride height. Specification Front & Rear top mount: rubber spring rate: front 10kg/mm (560 lbs/in) rear 6 kg/mm (336 lbs/in) Adjustable

Height: Yes lowering 1" to 3" Shock type: Twin tube Spring Preload: 7-10 mm
Colour: blue with black spring Package included Complete coilovers assembly 2 front & 2 rear A pair wrench for height adjustment Dimension Package: 71*51*21cm Weight: 24400g Note Compatible for Honda Accord 1998-2002 Not for UK manufactured vehicle Warranty: one year warranty for any manufacturing defect


...

Introduction A coilover is an automobile suspension device. Thanks to built-in adjustability, coilovers offer the ability to be shortened or lengthened
- lowering or raising the ride height of your vehicle through manual adjustment, without complex electronics or hydraulics. A coilover kit consists of a damper & a shock absorber with a coil spring around it. Maxpeedingrods provides performance aftermarket adjustable coilovers suspension kit compatible for Lexus series. You can enjoy a comfortable riding experience in all road conditions. Application Compatible for Lexus IS 250 / IS350 RWD 2nd Gen. 2006-2012 Compatible for Lexus GS350 RWD 2007-2011 Compatible for Lexus GS430 RWD 2007-2011 RWD Only, not fit for AWDSpecification Ma Xpeedingrods Coilover kit is simply great for daily driver.1. Product included: Complete coilovers 2 front & 2 rear, a pair wrench for height adjustment. 2. Adjustable Camber Plate: NO.3. Adjustable Damper: 24 ways Adjustable Damper.4. Spring rate: Front: 12 kg/mm (...
...

Introduction A coilover is an automobile suspension device. Thanks to built-in adjustability, coilovers offer the ability to be shortened or lengthened
- lowering or raising the ride height of your vehicle through manual adjustment, without complex electronics or hydraulics. A coilover kit consists of a damper & a shock absorber with a coil spring around it. Maxpeedingrods provides performance aftermarket adjustable coilovers suspension kit compatible for Lexus series. You can enjoy a comfortable riding experience in all road conditions. Application Compatible for Lexus IS 250 / IS350 RWD 2nd Gen. 2006-2012 Compatible for Lexus GS350 RWD 2007-2011 Compatible for Lexus GS430 RWD 2007-2011 RWD Only, not fit for AWDSpecification Ma Xpeedingrods Coilover kit is simply great for daily driver.1. Product included: Complete coilovers 2 front & 2 rear, a pair wrench for height adjustment. 2. Adjustable Camber Plate: NO.3. Adjustable Damper: 24 ways Adjustable Damper.4. Spring rate: Front: 12 kg/mm (...
...

Application Compatible for Honda Accord VIII LX, SE, LX-P sedan CP2 2008-2012 Compatible for Honda Accord VIII LX, SE, LX-P sedan CP3 2008-2012 Compatible for Honda Accord VIII LX, SE, LX-P coupe CS1 (north American only) 2008-2012 Compatible for Honda Accord VIII LX, SE, LX-P CS2 (north American only) 2008-2012 Compatible for Honda Accord VIII LX, SE, LX-P sedan CU1 CU2 CU3 2008-2015 Compatible for Honda Accord VIII Tourer 5-door wagon CW1 2008-2015 Compatible for Acura TSX (North America) 2009-2015 Compatible for Accord Euro （ Australia & New Zealand）2008.6-2015.7 Specification Product included: Complete coilovers 2 front & 2 rear as shown in the picture Dampening: 24 levels rebound dampening adjustable Adjustable

Height: YESAdjustable Camber Plate: NOFront & Rear upper Mounts: Rubber Front Spring Rate: 10 kg/mm (560 in/lbs) Rear Spring Rate: 7 kg/mm (392 in/lbs) Spring Preload: 7-10 mm Drop Height Front: 1-3in Drop Height Rear: 1-3in Shock type： Twin tube Color： Red Warranty: one year Feature- Able to lower ride height by 1''-3''; allows user to have a more aggressive stance.- Coilovers are 24-way adjustable. Rebound & Dampening adjustment which allows the user the ability to dial in your coilovers to any driving needs. The user can enjoy a comfortable riding experience in all road conditions.- Twin-Tube Shock design is used for low internal frictional resistance in order to increase efficiency & keep shock temps low.- Height adjustment does not sacrifice damper stroke length.- These coilovers are able to have their height adjusted without being taken out of the car.- Most components of the suspension parts are made from 6061-T6 aluminum to increase strength & rigidity.- High Tensile strength performance spring---Tested under a 600, 000 time continuous compression test, the spring distortion was less than 0.04%. Plus, the special surface treatment improves the durability & performance.- Adjustment tools included in the kit. Notice- Professional installation is highly recommended.- Please check our store for other auto parts you may be interested in.- Please feel free to contact us for whatever we can help.

...

Application Compatible for Honda Accord VIII LX, SE, LX-P sedan CP2 2008-2012 Compatible for Honda Accord VIII LX, SE, LX-P sedan CP3 2008-2012 Compatible for Honda Accord VIII LX, SE, LX-P coupe CS1 (north American only) 2008-2012 Compatible for Honda Accord VIII LX, SE, LX-P CS2 (north American only) 2008-2012 Compatible for Honda Accord VIII LX, SE, LX-P sedan CU1 CU2 CU3 2008-2015 Compatible for Honda Accord VIII Tourer 5-door wagon CW1 2008-2015 Compatible for Acura TSX (North America) 2009-2015 Compatible for Accord Euro （ Australia & New Zealand）2008.6-2015.7 Specification Product included: Complete coilovers 2 front & 2 rear as shown in the picture Dampening: 24 levels rebound dampening adjustable Adjustable

Height: YESAdjustable Camber Plate: NOFront & Rear upper Mounts: Rubber Front Spring Rate: 10 kg/mm (560 in/lbs) Rear Spring Rate: 7 kg/mm (392 in/lbs) Spring Preload: 7-10 mm Drop Height Front: 1-3in Drop Height Rear: 1-3in Shock type： Twin tube Color： Red Warranty: one year Feature- Able to lower...

...

Application Compatible for Honda Accord VIII LX, SE, LX-P sedan CP2 2008-2012 Compatible for Honda Accord VIII LX, SE, LX-P sedan CP3 2008-2012 Compatible for Honda Accord VIII LX, SE, LX-P coupe CS1 (north American only) 2008-2012 Compatible for Honda Accord VIII LX, SE, LX-P CS2 (north American only) 2008-2012 Compatible for Honda Accord VIII LX, SE, LX-P sedan CU1 CU2 CU3 2008-2015 Compatible for Honda Accord VIII Tourer 5-door wagon CW1 2008-2015 Compatible for Acura TSX (North America) 2009-2015 Compatible for Accord Euro （ Australia & New Zealand）2008.6-2015.7 Specification Product included: Complete coilovers 2 front & 2 rear as shown in the picture Dampening: 24 levels rebound dampening adjustable Adjustable

Height: YESAdjustable Camber Plate: NOFront & Rear upper Mounts: Rubber Front Spring Rate: 10 kg/mm (560 in/lbs) Rear Spring Rate: 7 kg/mm (392 in/lbs) Spring Preload: 7-10 mm Drop Height Front: 1-3in Drop Height Rear: 1-3in Shock type： Twin tube Color： Red Warranty: one year Feature- Able to lower ride height by 1''-3''; allows user to have a more aggressive stance.- Coilovers are 24-way adjustable. Rebound & Dampening adjustment which allows the user the ability to dial in your coilovers to any driving needs. The user can enjoy a comfortable riding experience in all road conditions.- Twin-Tube Shock design is used for low internal frictional resistance in order to increase efficiency & keep shock temps low.- Height adjustment does not sacrifice damper stroke length.- These coilovers are able to have their height adjusted without being taken out of the car.- Most components of the suspension parts are made from 6061-T6 aluminum to increase strength & rigidity.- High Tensile strength performance spring---Tested under a 600, 000 time continuous compression test, the spring distortion was less than 0.04%. Plus, the special surface treatment improves the durability & performance.- Adjustment tools included in the kit. Notice- Professional installation is highly recommended.- Please check our store for other auto parts you may be interested in.- Please feel free to contact us for whatever we can help.

...
